Brand
Diameter pellet
Wall thickness
Effective pressway

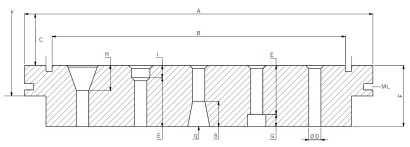

A = Die width: 135 mm
B = Die track: 78 mm
C = Internal diameter: 355 mm
D = Hole diameter: 3 mm
E = Effective pressway: 60 mm
F = Thickness: 60 mm
K = Machine fitting diameter: 445 mm
L = Number of holes: 6
M = Measure of treat holes: M20

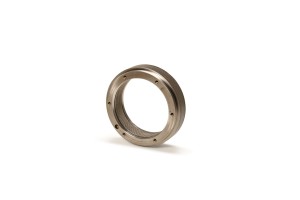

Die Andritz V3-75 Ø4x60

1 in stock

« Back to overview

  • Part No.:
    DIE-AND-V3.75-0040
  • Brand:
    Andritz - Simon Heesen
  • Type(s):
    Andritz Heesen V3-75
  • Diameter pellet:
    3
  • Wall thickness:
    60
  • Effective pressway:
    60
  • Animal feed or biomass:
    Animal feed
  • A = Die width:
    135 mm
  • B = Die track:
    78 mm
  • C = Internal diameter:
    355 mm
  • D = Hole diameter:
    3 mm
  • E = Effective pressway:
    60 mm
  • F = Thickness:
    60 mm
  • K = Machine fitting diameter:
    445 mm
  • L = Number of holes:
    6
  • M = Measure of treat holes:
    M20
  • Die No.:
    475932 - 60300227 - M063 - 131563680
  • Producer:
    Andritz

Percentage new: 100%



  •   All spareparts on stock
